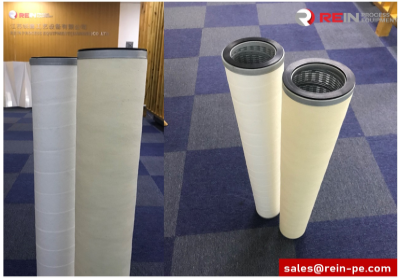

Filter Element of Filter Separator is a special cartridge designed to catch solids, impurities and liquids which are present in natural gas stream. Filter elements are placed in the solid-separation section of the horizontal and vertical filter separators and shall be cleaned or replaced based on the application conditions.

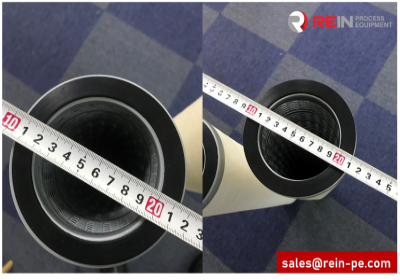

The direction of flow is outside to in. 3.5”, 4.5” and 5.5” diameters are available in lengths up to 72”. Nominal micron ratings of 5 are available. Elements also provide excellent dry gas filtration. Standard element construction includes: Phenolic Resin Molded fiberglass media designed to efficiently coalesce free liquids for second stage removal while delivering high solids holding capacity. Plated steel end caps and cores which are mechanically joined to ensure the integrity of the element. A cotton outer cover to protect the element and the operator during installation.
Recommended Operating Limits
Maximum Operating Temperature ............................275oF
Minimum Operating Temperature ...............................60oF
Change out Differential ......................................... 15 PSID
Maximum Differential .......................................... >75 PSID
Rein Process Equipment is a manufacturer and supplier of filter elements, as well as filter separators from China. Feel free to contact us for technical assistance and proposal.

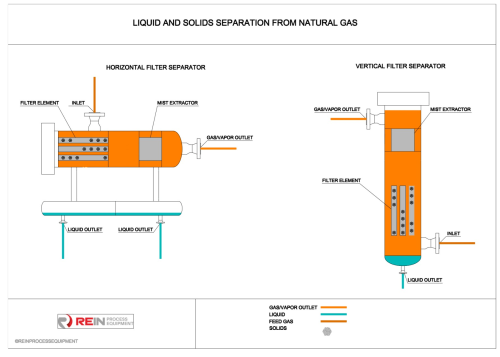

Horizontal and Vertical Filter Separator

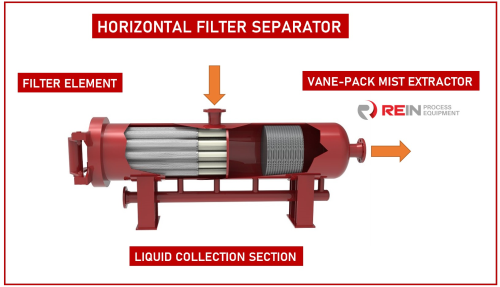

Horizontal Filter Separator

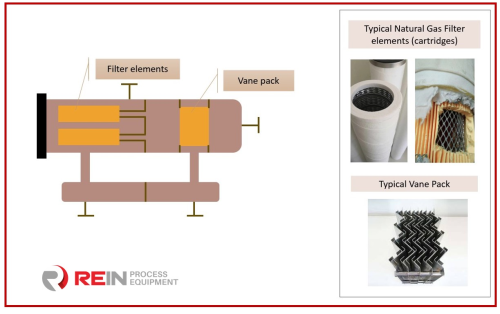

Filter-separators are special mechanical devices designed to clean natural gas from solids, impurities and unwanted liquids in gas pipelines, gas processing facilities, gas custody and transfer units.
Design and configuration of filter separator depends on pipeline operational conditions, as well as the requirements of the client to spec gas natural gas. Feel free to contact Rein Process Equipment for technical assistance and quotation concerning filter separators and filter elements.
